LEGO Mindstorms Soccer Playing Robot
Rate it  12345       Add a comment Add a comment   Zoom in  Zoom in

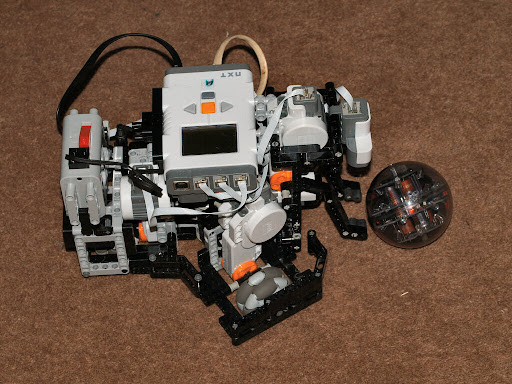

This is the Mark I version of my LEGO Mindstorms Soccer Playing Robot.
About this creation

The Robot relies on 3x Rotacaster omni-whheels in a Killough Platform configuration for movement. The three Rotacasters are driven by 3x NXT Motors connected to the NXT Brick.

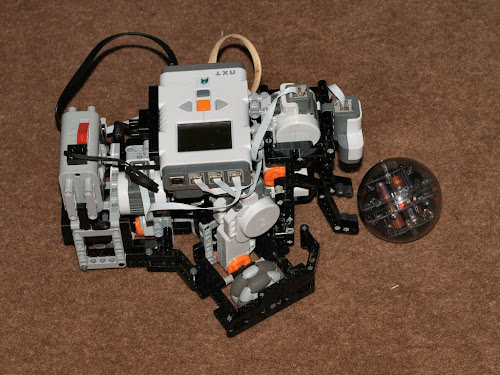

LEGO Mindstorms NXT<br />
Soccer Bot - Mark I

A fourth NXT Motor is used for the Ball Kicking Mechanism. This motor is controller via a Mindsensor's Motor Mux (NXT-MMX) connected to a secondary 9volt power supply at the rear of the robot.

The Robot uses two sensors, a standard LEGO Ultrasonic Sensor and a Hitechnic IR-Seeker. The Ultrasonic Sensor is used to detect that the ball is in contact with the Ball Kicking Mechanism. The Hitechnic IR-Seeker is a Infra-red light detector, used for locating and tracking the Infra-red emitting Hitechnic Soccer Ball.

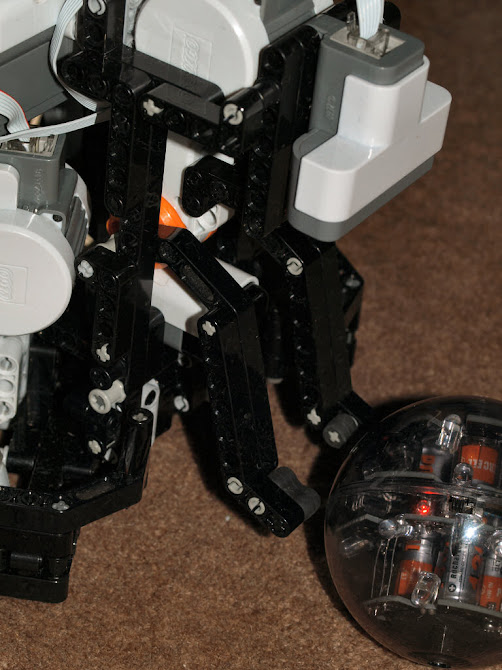

LEGO Mindstorms NXT Soccer Bot - Mark I (Kicker Mechanism)

The NXT IRSeeker is a multi-element infra-red detector that detects infra-red signals from sources such as the HiTechnic IRBall soccer ball, infra-red remote controls. With a specially designed curved lens and five internal detectors, the IRSeeker has a 240 degree view making it perfect for playing robot soccer with the HiTechnic IRBall. The IRSeeker has enhanced modes that detect modulated IR signals, including the new RoboCup Jr stepped modulated mode, and it filters out background signals giving superior performance in brightly lit rooms and sunny locations. The sensor returns the signal direction and strength, making it easy to locate and gauge the relative distance to the target.

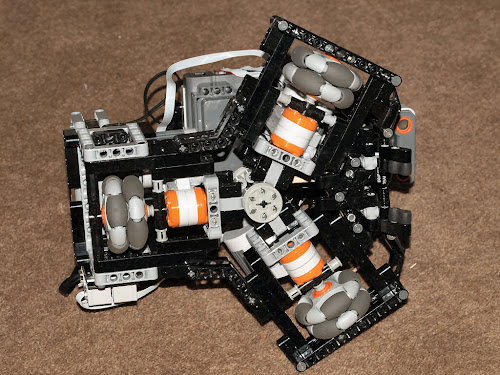

LEGO Mindstorms NXT<br />
Soccer Bot - Mark I






Double 48mm Rotacaster Holonomic Wheel with LEGO compatible Axle Centre.

BuyNow4 PACK: R2-0484-6526-4

Price: AUD $72.60(including GST)


BuyNowSINGLE: R2-0484-6526

Price: AUD $21.45(including GST)


Key Features


Capacity: 35 kgs

Body & Roller Colour: LEGO NXT Colour

Wheel Diameter: 48mm

Roller Diameter: 13mm

Hub Width: 25.5mm

Rollers: polyurethane S65A








No comments yet.


By Sparra McNamara
Add to my favorite builders


1,391 visitors
0 comments
Added August 31, 2011
